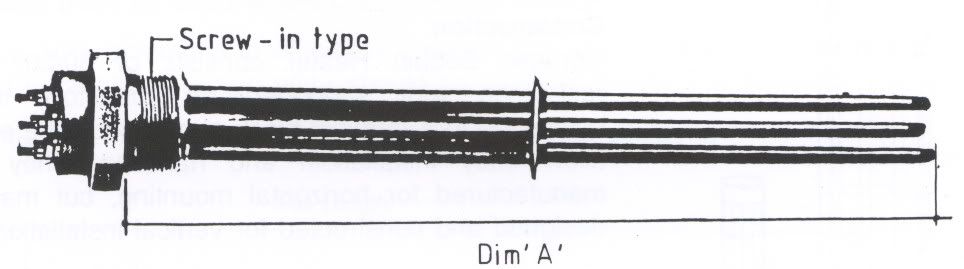

Triple Immersion Element





OIL and WATER HEATERS

ILF range of screw-in immersion elements are designed with various sheath ratings to suit heating of most grades of oil, alkaline - cleaning solutions and water. Special wattages, voltages, lengths and diameters can be supplied on customer's request.




OIL IMMERSION HEATERS
11/2" BSP SCREW-IN TYPE
(31 Kw/sq.mt)

dia. 8.2 mm
OIL IMMERSION HEATERS
2" BSP SCREW-IN TYPE
(31 Kw/sq.mt)

dia. 11.2 mm
Cat. No Watts Volts Dim 'A'
Cat. No Watts Volts Dim 'A'
ILF41-IB3 1500 240/415 349
ILF41-IC3 1950 240/415 343
ILF42-IB3 2250 240/415 507
ILF42-IC3 3000 240/415 501
ILF43-IB3 3000 240/415 662
ILF43-IC3 4050 240/415 656
ILF44-IB3 3750 240/415 819
ILF44-IC3 5100 240/415 813
ILF45-IB3 4500 240/415 997
ILF45-IC3 6000 240/415 991
ILF46-IB3 5400 240/415 1184
ILF46-IC3 7500 240/415 1178
ILF47-IB3 6000 240/415 1327
ILF47-IC3 8100 240/415 1321
WATER IMMERSION HEATERS
11/2" BSP SCREW-IN TYPE
(77.5 Kw/sq.mt)

dia. 8.2 mm
WATER IMMERSION HEATERS
2" BSP SCREW-IN TYPE
(77.5 Kw/sq.mt)

dia. 11.2 mm
Cat. No Watts Volts Dim 'A'
Cat. No Watts Volts Dim 'A'
ILF11-IB3 1800 240/415 221
ILF11-IC3 3000 240/415 215
ILF12-IB3 2700 240/415 297
ILF12-IC3 4200 240/415 291
ILF13-IB3 3600 240/415 372
ILF13-IC3 5400 240/415 366
ILF14-IB3 4500 240/415 447
ILF14-IC3 6600 240/415 441
ILF15-IB3 5400 240/415 552
ILF15-IC3 7800 240/415 516
ILF16-IB3 6000 240/415 574
ILF16-IC3 8700 240/415 568
ILF17-IB3 7200 240/415 675
ILF17-IC3 9900 240/415 669
WATER IMMERSION HEATERS
11/2" BSP SCREW-IN TYPE
(120 Kw/sq.mt)

dia. 8.2 mm
WATER IMMERSION HEATERS
2" BSP SCREW-IN TYPE
(120 Kw/sq.mt)

dia. 8.2 mm
Cat. No Watts Volts Dim 'A'
Cat. No Watts Volts Dim 'A'
ILF32-IB3 2700 240/415 152
ILF32-IC3 3600 240/415 146
ILF33-IB3 3600 240/415 212
ILF33-IC3 4800 240/415 206
ILF34-IB3 4500 240/415 259
ILF34-IC3 6000 240/415 253
ILF35-IB3 5400 240/415 307
ILF35-IC3 7200 240/415 301
ILF36-IB3 6000 240/415 339
ILF36-IC3 8100 240/415 333
ILF37-IB3 7200 240/415 404
ILF37-IC3 9750 240/415 398
ILF38-IB3 9000 240/415 502
ILF38-IC3 12000 240/415 496
